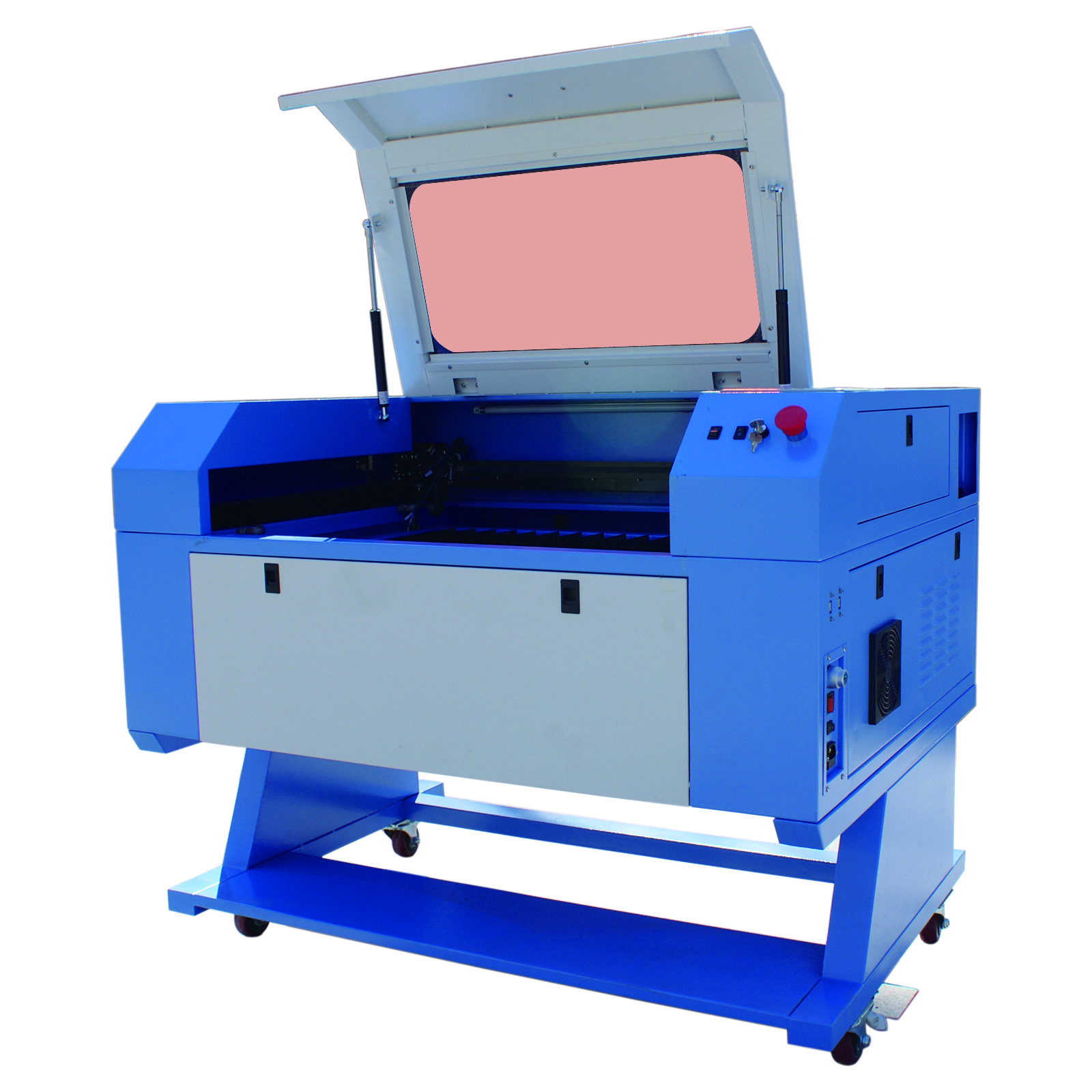

X700 Laser Engraver

X700 Laser Engraving Machine use the smart design, the frame of the machine can be split into 2 parts, so it can be moved through the narrow doors.

Characteristics

1. Laser engraver price
2. Adopt wheel motion system,faster speed.
3. Equipped with high-speed DSP control system, can work offline, with multi-color cutting function.
4. Built-in 256M memory, more convenient for work offline.
5. Full support for CorelDRAW, AutoCAD etc.
6. CE and FDA certificated, more reliable.

Products Advantages:

-High speed wheel motion system( reserve patent), equipped with speed-down, micro-step stepper motors, make the cutting more smooth and running more stable.

-Integrated framework style, working steadily, widely used in many kinds of industries for its economical and practical characters.

-Built-in 256M memory, can store multiple files at the same time, to support power-fail data retention of premanent document.

-Extensive material processing, smooth cutting edge and burr-free, does not need to polish, less waste. The depth of the carving can be adjusted automatically, high precision.

-Optional motorized up and down platform, rotary attachment, honeycomb platform, Red dot pointer, and big power laser tube.

Model Number ~ X700

Laser tube type ~ Co2 Glass sealed laser tube
Laser power ~ 50W/60W
Engraving Speed ~ 1000mm/s
Engraving Area ~ 20″ x 28″
Cooling Mode ~ Water Cooling
Applicable Material ~ Acrylic, Crystal, Glass, Leather, MDO, Paper, Plastic, Plexiglass, Plywood, Rubber, Stone, Wood
Graphic Format Supported~  AI, BMP, DST, DXF, PLT
Dimension(L*W*H) ~  3.8′ x 2.8′ x 3.2′
Package Dimension ~ 5.6′ x 3.2′ x 3.9′
Certification ~ CE, FDA
Software Resolution ~1000 DPI
Location Precision ~ less than 0.01 mm
Software ~Auto laser
Warranty ~ 12 months (6 months for laser tube, mirrors and lens)
N.W. ~  286 Lbs
G.W. ~  462 lbs

$3999.00 CDN

Price does not include shipping from China to your address. Delivery is approx 45 – 50 days. Email sales02@signcut for a quote with shipping (please provide shipping address in your email).

Standard Accessories

Laser Engraving software (English)
User Manual (CD)
Water Pump
Air Exhaust Fan (installed)
Air Pump
Communication  Cable
3 Reflect Optics (installed)
1 Focus Optics (installed)
1 Laser Tube
Other Tools

Optional Accessories

Rotary attachment for cylinder
Motorized up and down platform
60W laser tube
Water Chiller

Applicable Material

Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting, industrial prototyping, industrial marking, sign making, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.

Applicable Industry

Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,packaging and paper industry.

QQ图片20170406211027

QQ图片20170406211309

QQ图片20170406211036

MDF样品

牛仔布料

FAQ:

Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.

Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems

Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.

Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 65W.

Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.

Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.

Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.

Services

SignCut will provide on site training for our machines at an additional cost to be determined on an individual basis. Signcut do not provide ongoing support for software after initial training, you must contact the software company.
