Description

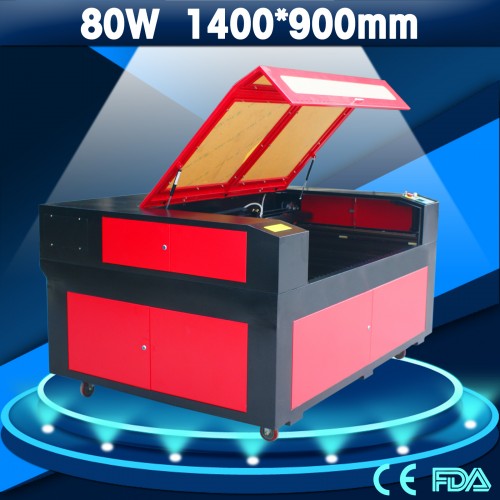

Model ~ CM1490
Work Area ~ 36″ x 55″
Laser Tube ~ Water cooling Co2 Sealed Glass
Control system ~ DSP
Drive type ~ Microstepping Stepper Motor System
Laser Power ~ 80W/100W/120W/150W
Max Speed ~ 1000 mm/s
Image Form ~ HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
Resolution ~ 2500 DPI
Double Head ~ Optional
PC Interface ~ USB2.0 and USB Disk
Red Dot Pointer ~ Optional
Accessories ~ Air Assistant, Exhaust system, Water Cooling System
Power ~ 110V or 220 – 240V / 50~60Hz
Warranty 12 Months
Machine Size ~ 80″ x 57″ x 42″
Gross Weigh ~ 1102 lbs

$9,999.00 CDN

(Prices are for pick up only, call 902-800-4129 for a shipping quote)

What is included:

• Laser Engraving software Package (English Version)
• User Manual (CD)
• Industry water cooling system
• Air exhaust fan
• Air Pump
• Communication cable
• 3 Reflect optics (installed in the machine)
• 1 Focus optics (installed in the machine)
• 1 Laser tube
• Other tools

FAQ

Q. Can the machine do engraving and cutting?
A. Yes, even on the same job, you can do setting with different colour in the software and also can make holes.

Q. Does the machine work with a computer?
A. You must connect with a computer with USB cable when you change the settings of machine. For the design files, you can transfer the file with USB memory stick to the machine, or  download it to the machine directly with USB cable from computer.

Q. Can the machine be split so it can fit into my doors?
A.  Unfortunately no.

Q. How long does the laser tube last?
A.  About 3000+ hours.

Q. Do you have available spare parts?
A. We provide spare parts of any model we list.

Q. I have heard the mirrors need cleaning?
A. Yes they do but not after every job, once a week is normal.

Q. Can I put larger materials in the machine?
A. Yes, the machine has doors which can be opened to accommodate larger materials

Q. Is there an after-sell service?
A. Free tech support for the whole life of the machine, and 24 hours telephone support. Camera of MSN support by MSN or skype online when you need.
